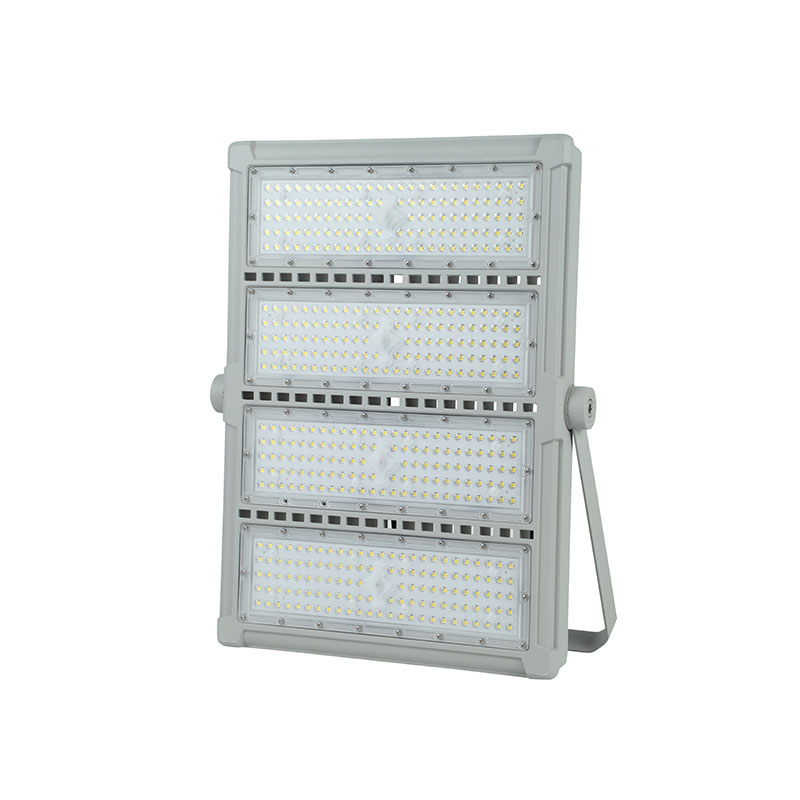

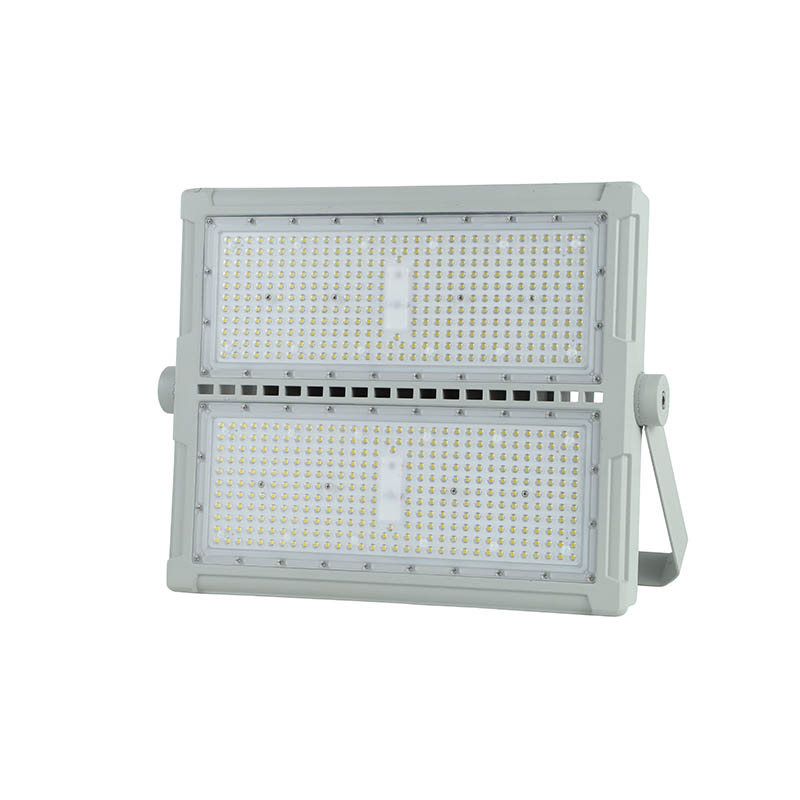

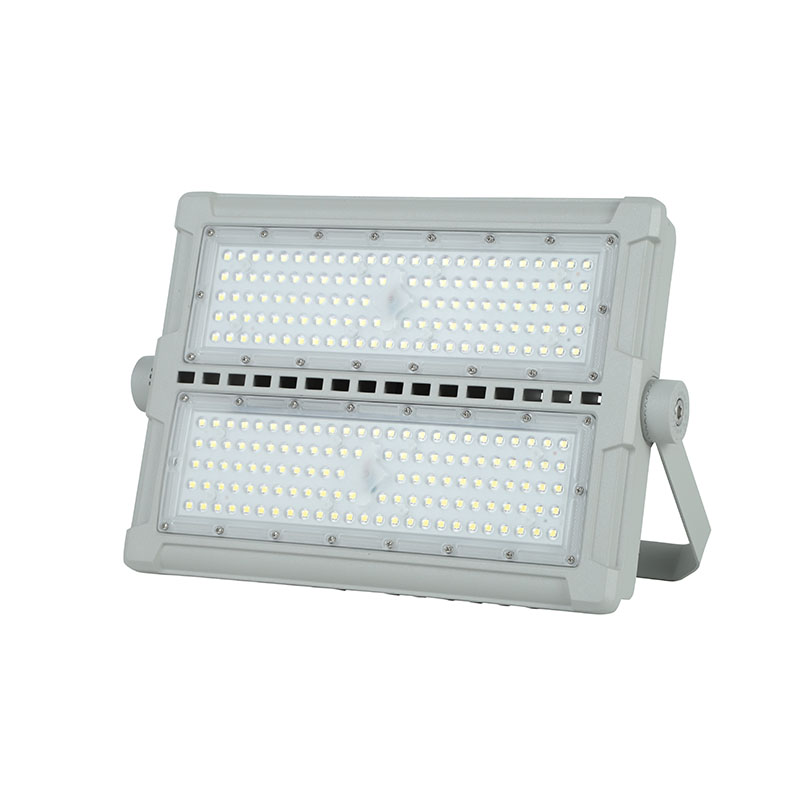

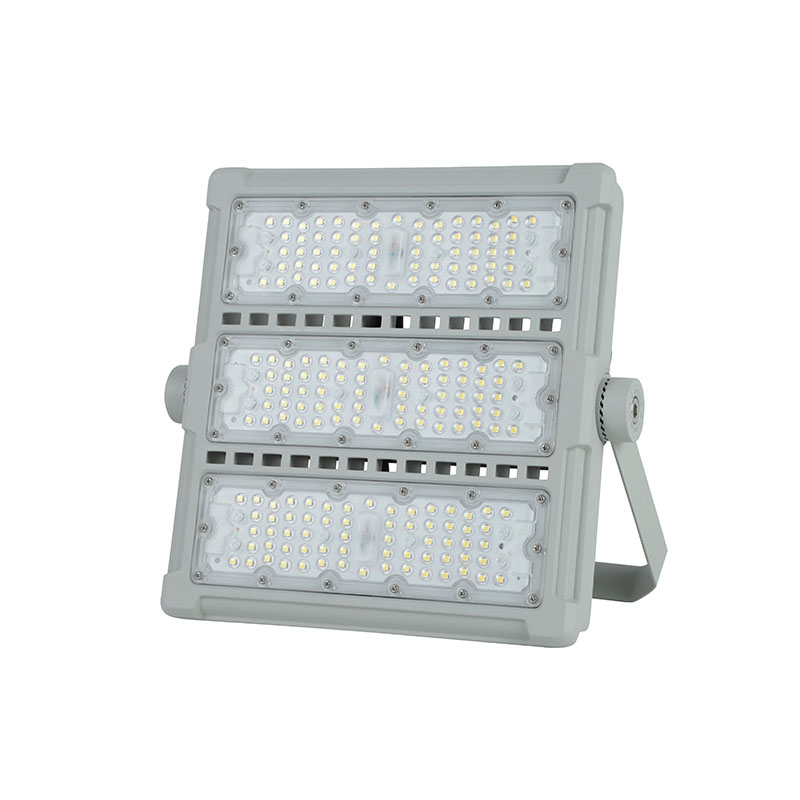

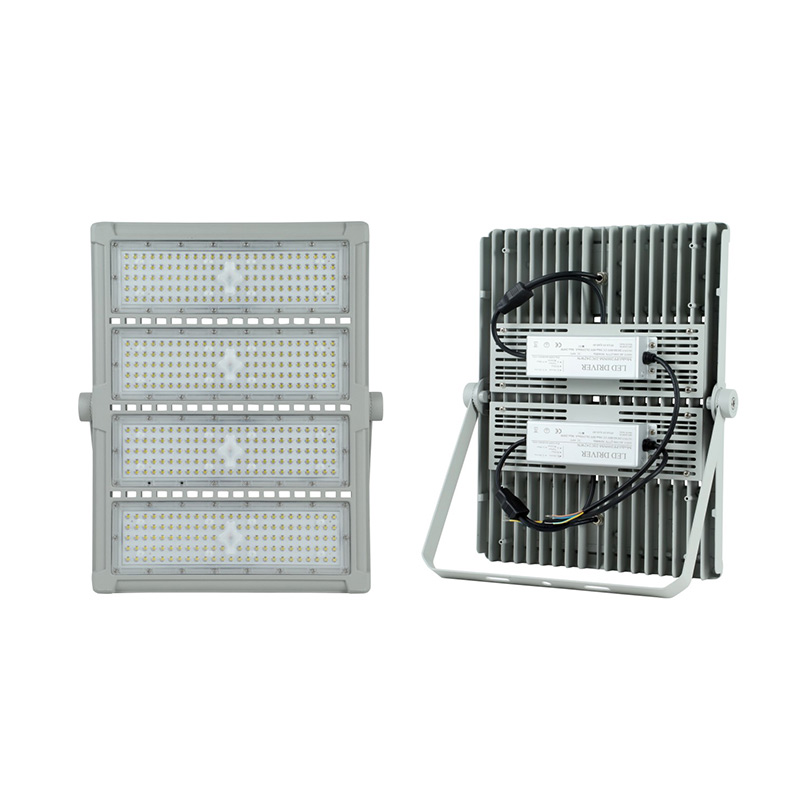

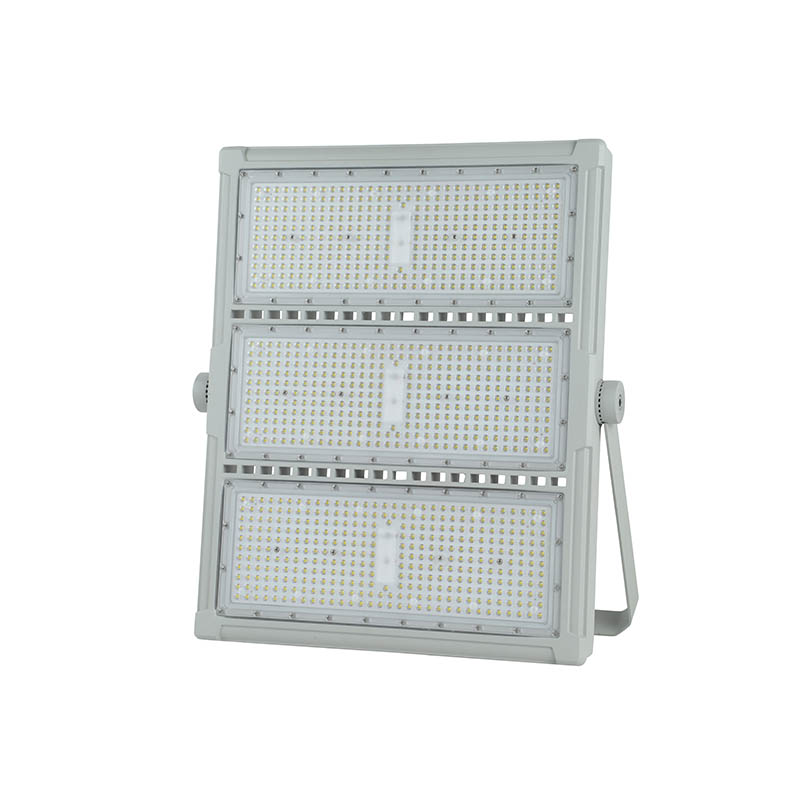

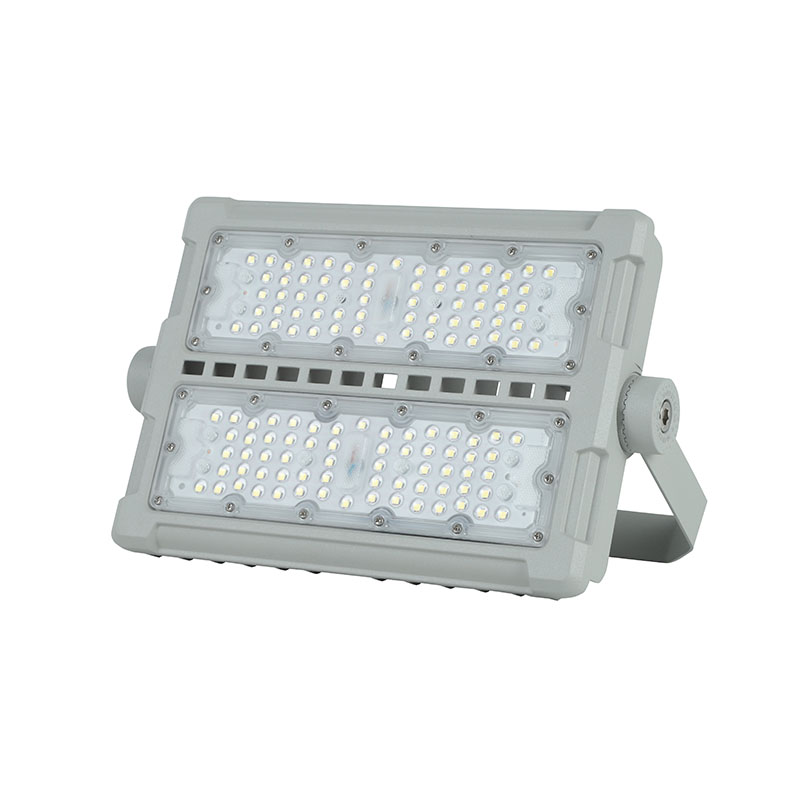

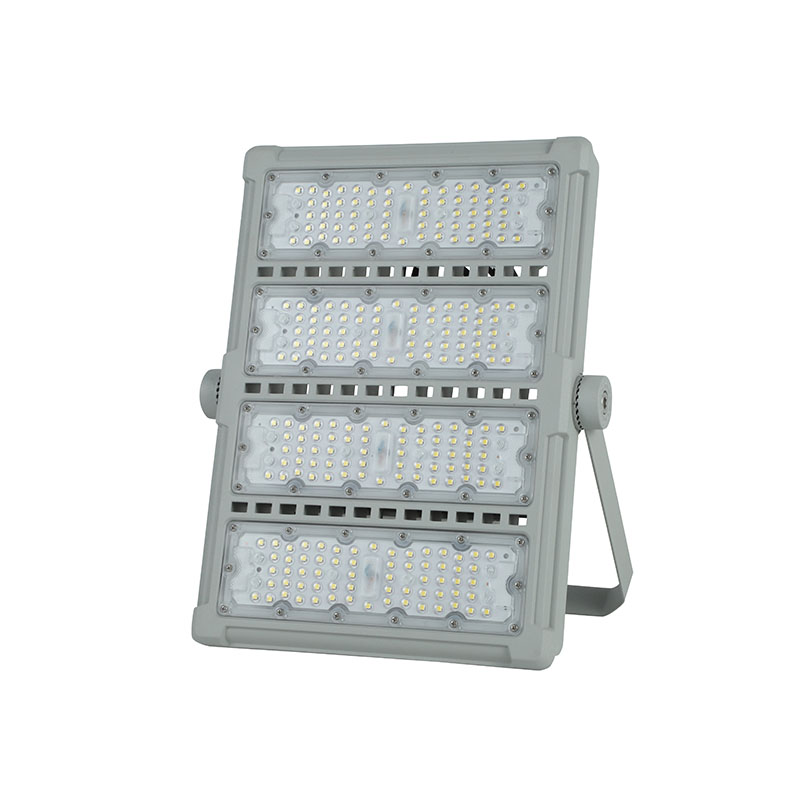

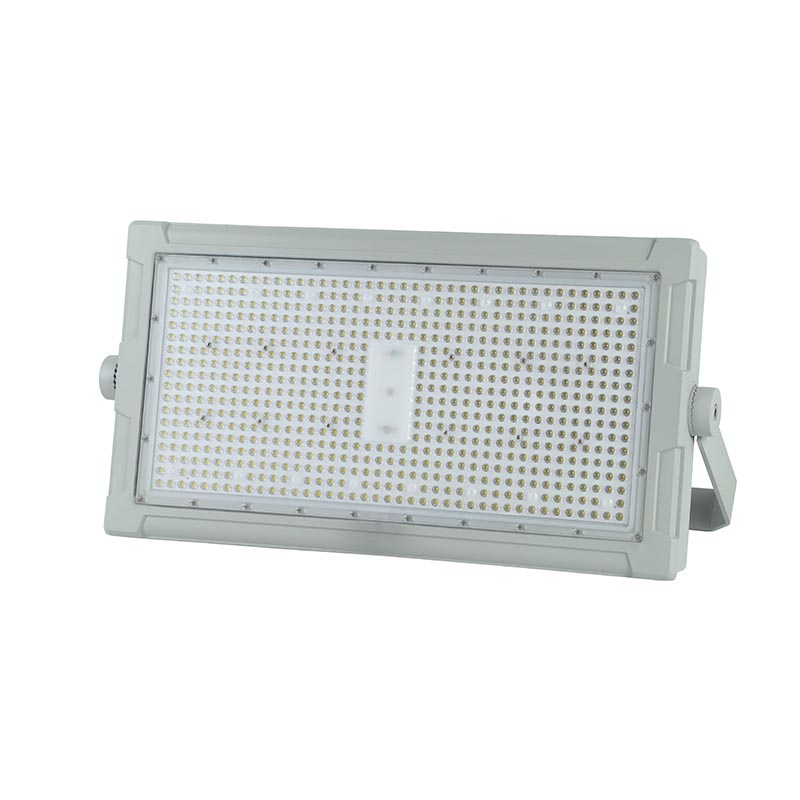

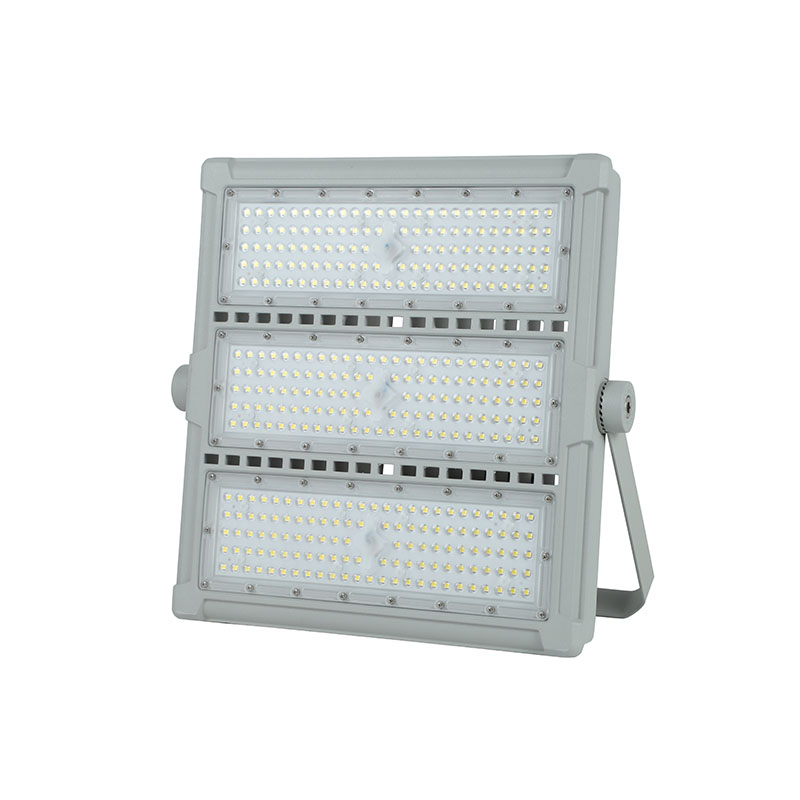

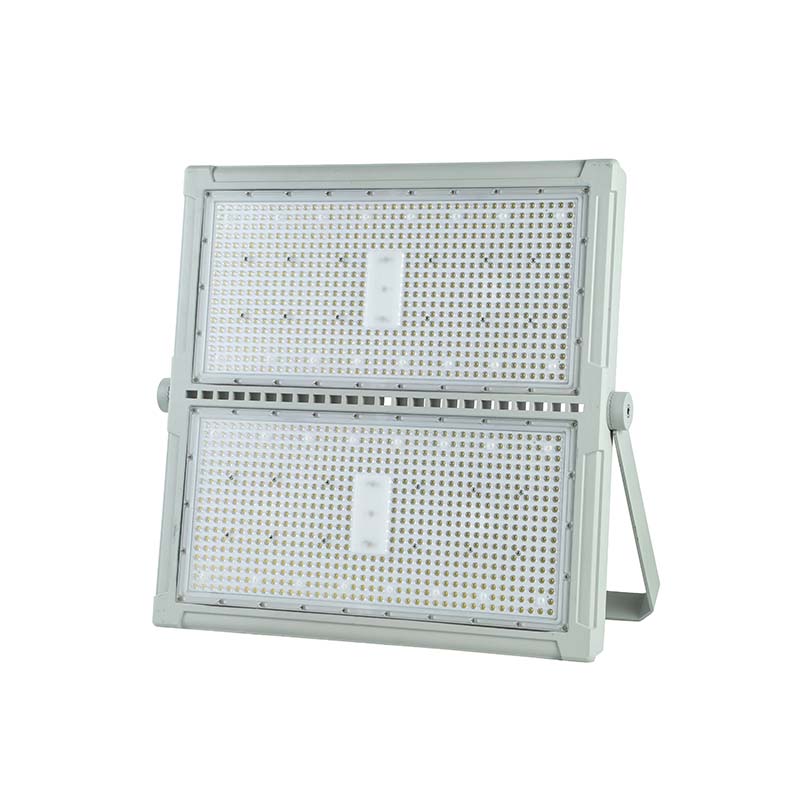

50W 100W 200W 500W LED Outdoor Flood Light
LED Flood Light
Model:TG029
The LED Outdoor Flood Light can be a useful outdoor light source which is efficient, low on energy, and ideal for fitting on large places which include: building exteriors, sports fields, landscapes, and even parking lots.
Products Description
The LED Outdoor Flood Light can be a useful outdoor light source which is efficient, low on energy, and ideal for fitting on large places which include: building exteriors, sports fields, landscapes, and even parking lots. These lights employ advanced LED technology to produce high levels of concentrated illumination whilst helping reduce the amount of energy and costs used in operation.
LED Outdoor Flood Light Parameters:
TG029A ISOLATED 100-265V
| MODEL | TG029A-50WX2 | TG029A-50WX3 | TG029A-50WX4 | TG029A-100WX2 | TG029A-100WX3 | TG029A-100WX4 |
| POWER | 100W | 150W | 200W | 200W | 300W | 400W |
| LED QTY | 60*2PCS-3030SMD | 60*3PCS-3030SMD | 60*4PCS-3030SMD | 120*2PCS-3030SMD | 120*3PCS-3030SMD | 120*4PCS-3030SMD |
| Luminous Flux | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 90° | 90° | 90° | 90° | 30/60° | 30/60° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Dimension L*W*D(mm) | 239*318*68 | 330*318*71 | 421*318*71 | 295*386*77 | 410*386*81 | 525*386*77 |
| MODEL | TG029A-200WX2 | TG029A-200WX3 | TG029A-500WX1 | TG029A-500WX2 |
| POWER | 400W | 600W | 500W | 1000W |
| LED QTY | 336*2PCS-3030SMD | 336*3PCS-3030SMD | 672*1PCS-3030SMD | 672*2PCS-3030SMD |
| Luminous Flux | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 30/60° | 30/60° | 30/60° | 30/60° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Dimension L*W*D(mm) | 453*525*82 | 640*525*82 | 385*671*88 | 685*671*88 |
TG029B ISOLATED 100-265V
| MODEL | TG029B-50WX2 | TG029B-50WX3 | TG029B-50WX4 | TG029B-100WX2 | TG029B-100WX3 | TG029B-100WX4 |
| POWER | 100W | 150W | 200W | 200W | 300W | 400W |
| LED QTY | 60*2PCS-3030SMD | 60*3PCS-3030SMD | 60*4PCS-3030SMD | 120*2PCS-3030SMD | 120*3PCS-3030SMD | 120*4PCS-3030SMD |
| Luminous Flux | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 90° | 90° | 90° | 90° | 30/60° | 30/60° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Dimension L*W*D(mm) | 239*318*68 | 330*318*71 | 421*318*71 | 295*386*77 | 410*386*81 | 525*386*77 |
| MODEL | TG029B-200WX2 | TG029B-200WX3 | TG029B-500WX1 | TG029B-500WX2 |
| POWER | 400W | 600W | 500W | 1000W |
| LED QTY | 336*2PCS-3030SMD | 336*3PCS-3030SMD | 672*1PCS-3030SMD | 672*2PCS-3030SMD |
| Luminous Flux | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 30/60° | 30/60° | 30/60° | 30/60° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Dimension L*W*D(mm) | 453*525*82 | 640*525*82 | 385*671*88 | 685*671*88 |
About Us FEIDONG
Jiangmen City Feidong Lighting Co ., Ltd founded in 2009, with more than 15 years ' experience , we are professional manufacturer in line of various indoor and outdoor LED lighting products . Having been equipped with advanced manufacturing machines and quality test facilities , our factory is located in Jiangmen , with convenient transportation to Guangzhou , Shenzhen and Hongkong . We keep developing varieties of our product and upgrading our quality control system to enhance our market competitiveness . Meanwhile , OEM and ODM service are offered . Customer First , Environment First . These are our commitment to customers as well as the service tenet we are persevering .
