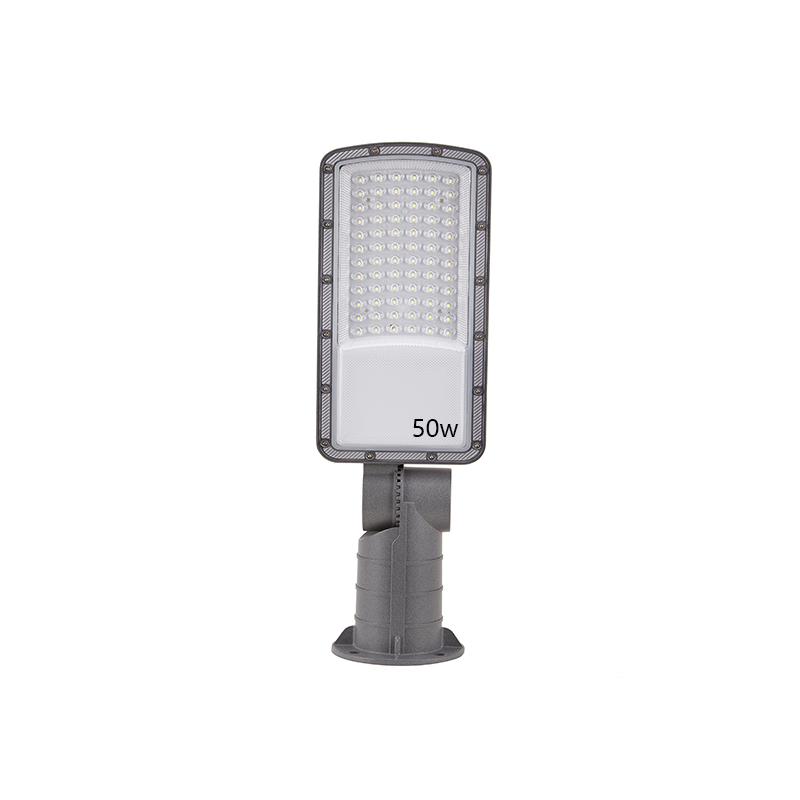

50W 100W 150W 200W 300W High Quality LED Street Light
LED Street Light

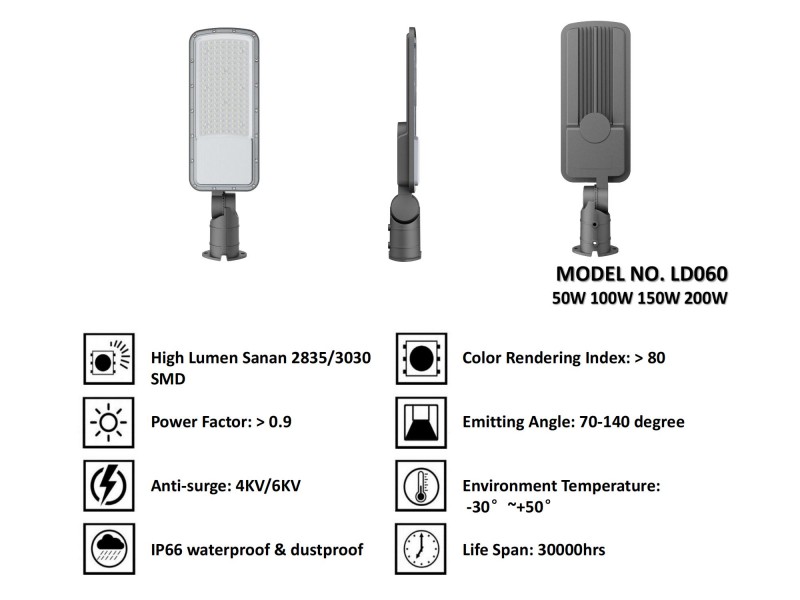

Model:LD060

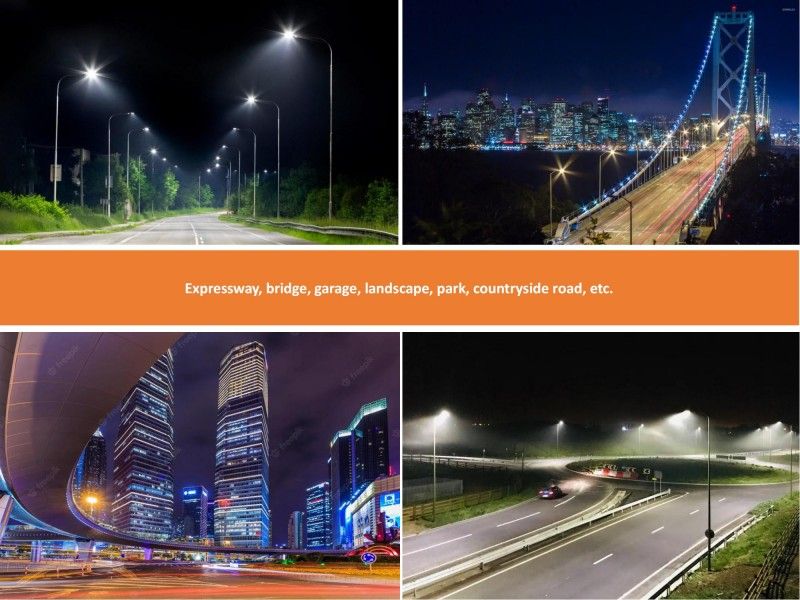

This High Quality LED Street Light is created using modern techniques and technologies as well as high quality materials which guarantees high output and energy savings in outdoor environments. The lights contain premium LED chips that achieve brilliant lighting effects, providing bright and even light in all directions of traffic areas such as roads, parking lots and walkways that increasing safety level.
High Quality LED Street Light Parameters:

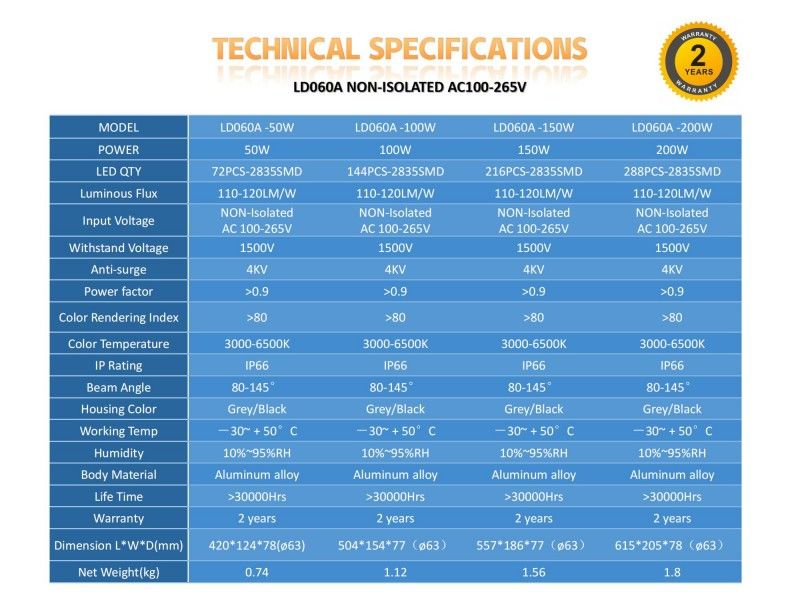

LD060A NON-Isolated AC 100-265V

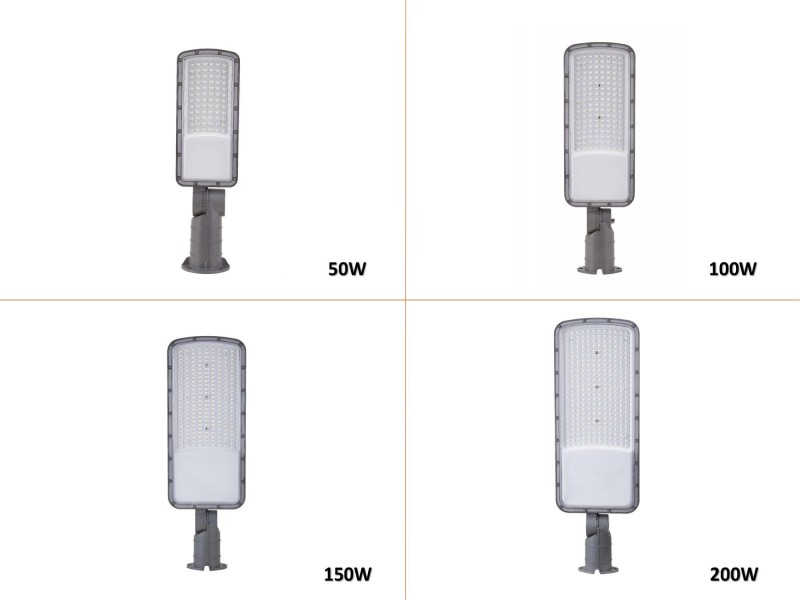

| MODEL | LD060A -50W | LD060A -100W | LD060A -150W | LD060A -200W |

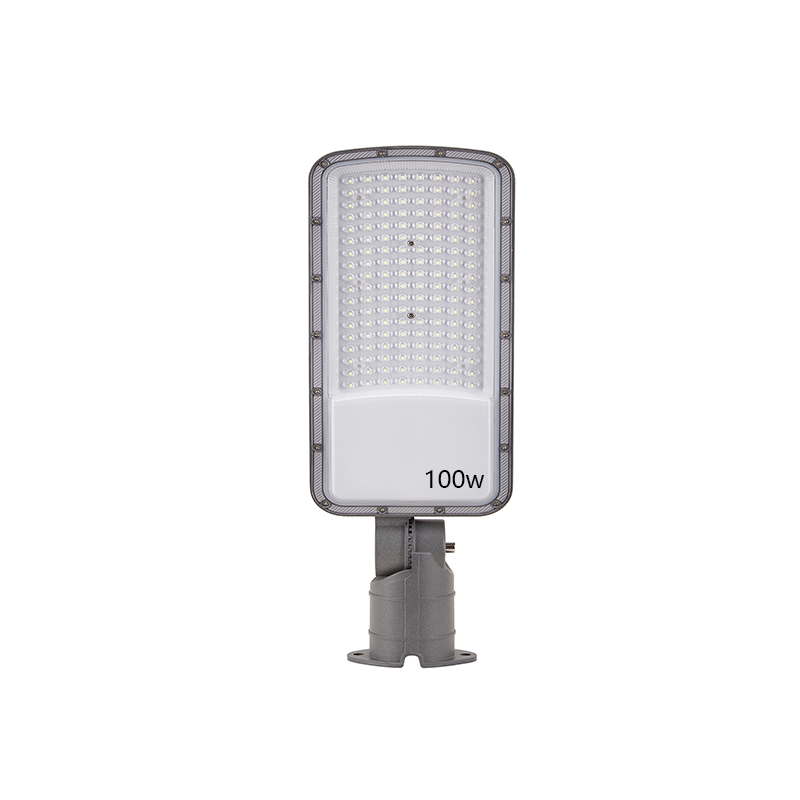

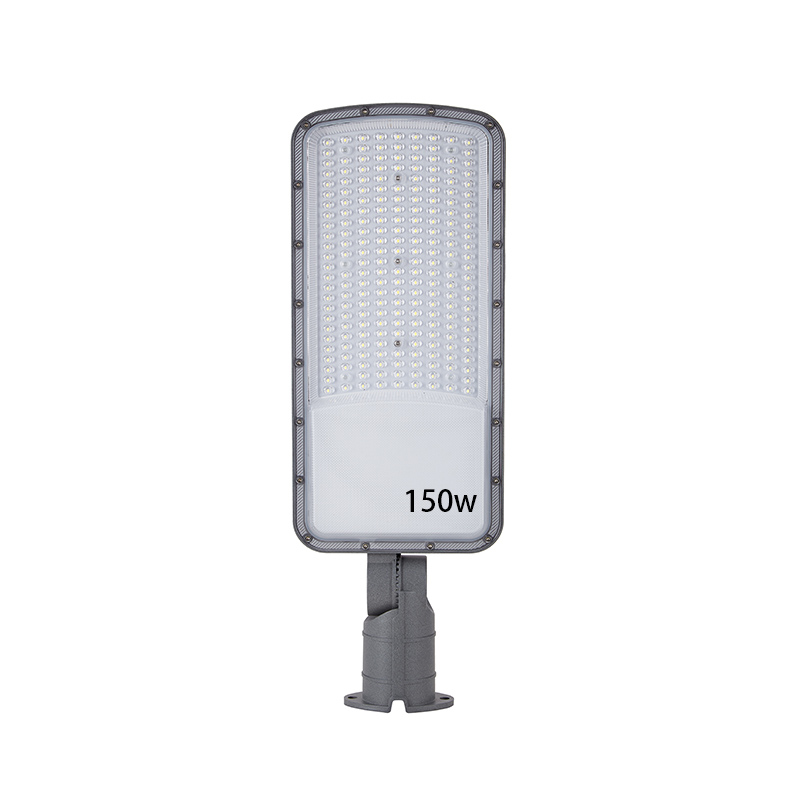

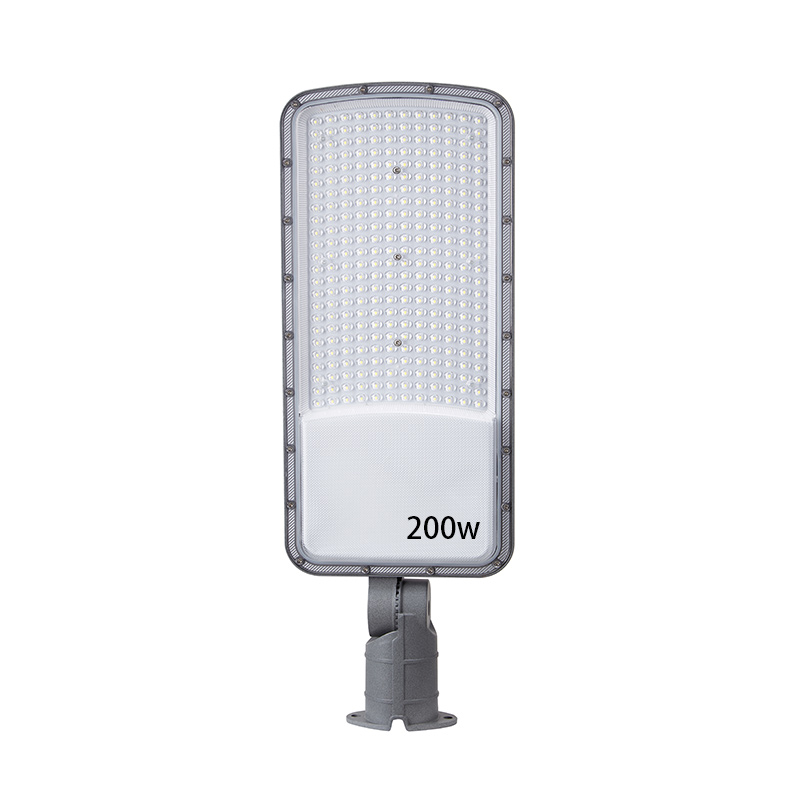

| POWER | 50W | 100W | 150W | 200W |
| LED QTY | 72PCS-2835SMD | 144PCS-2835SMD | 216PCS-2835SMD | 288PCS-2835SMD |
| Luminous Flux | 110-120LM/W | 110-120LM/W | 110-120LM/W | 110-120LM/W |
| Input Voltage | NON-Isolated AC 100-265V | NON-Isolated AC 100-265V | NON-Isolated AC 100-265V | NON-Isolated AC 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 4KV | 4KV | 4KV | 4KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |

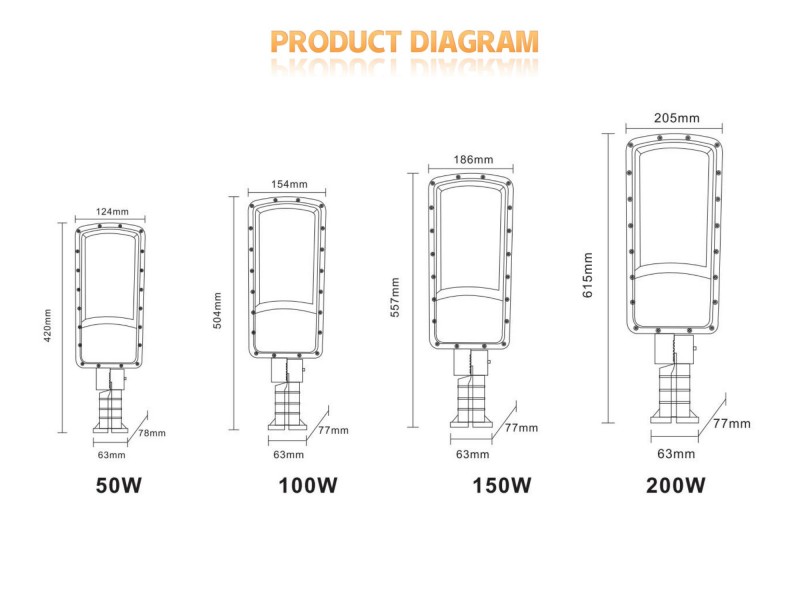

| Dimension L*W*D(mm) | 420*124*78(ø63) | 504*154*77（ø63） | 557*186*77（ø63） | 615*205*78 |
| Net Weight(kg) | 0.74 | 1.12 | 1.56 | 1.8 |
LD060B Isolated AC 100-265V
| MODEL | LD060B -50W | LD060B -100W | LD060B -150W | LD060B -200W |
| POWER | 50W | 100W | 150W | 200W |
| LED QTY | 72PCS-3030SMD | 144PCS-3030SMD | 216PCS-3030SMD | 288PCS-3030SMD |
| Luminous Flux | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |

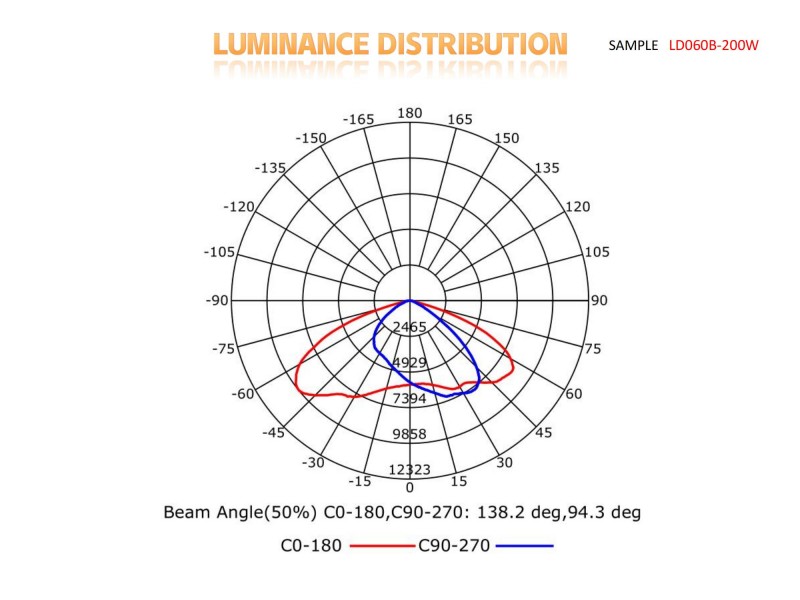

| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Dimension L*W*D(mm) | 420*124*78(ø63) | 504*154*77（ø63） | 557*186*77（ø63） | 615*205*78 |
| Net Weight(kg) | 0.74 | 1.12 | 1.56 | 1.8 |

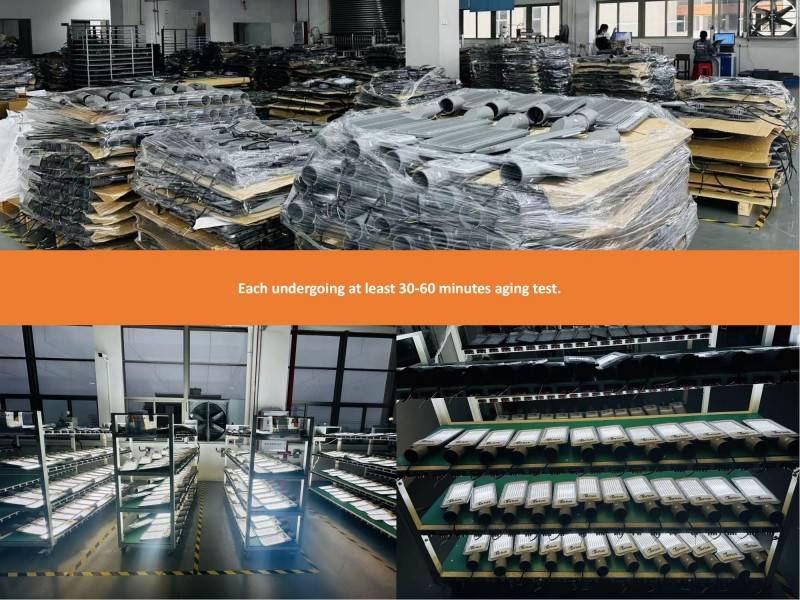

Jiangmen City Feidong Lighting Co ., Ltd founded in 2009, with more than 15 years ' experience , we are professional manufacturer in line of various indoor and outdoor LED lighting products . Having been equipped with advanced manufacturing machines and quality test facilities , our factory is located in Jiangmen , with convenient transportation to Guangzhou , Shenzhen and Hongkong . We keep developing varieties of our product and upgrading our quality control system to enhance our market competitiveness . Meanwhile , OEM and ODM service are offered . Customer First , Environment First . These are our commitment to customers as well as the service tenet we are persevering .
