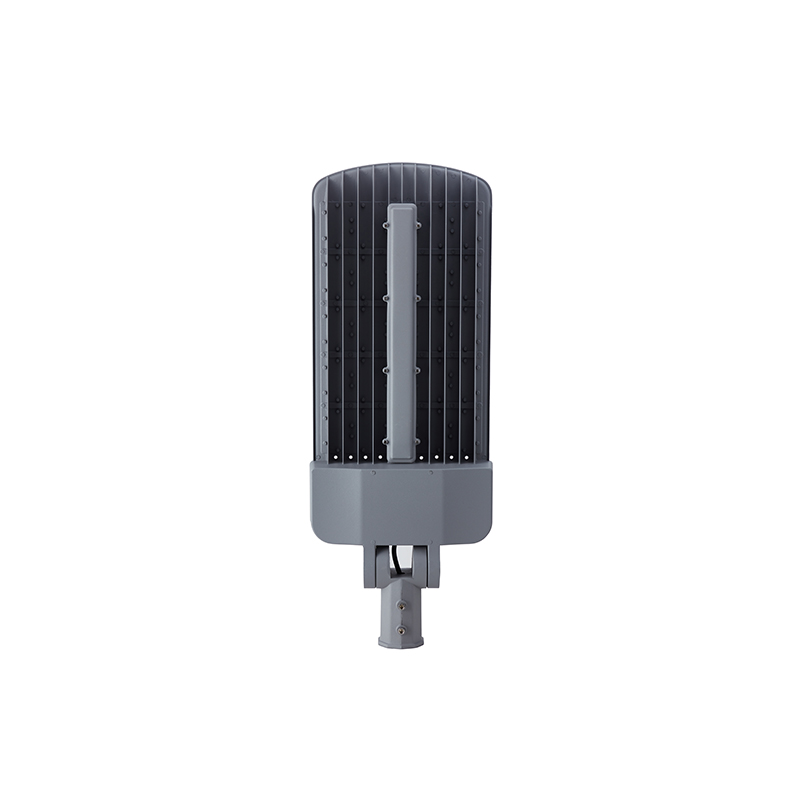

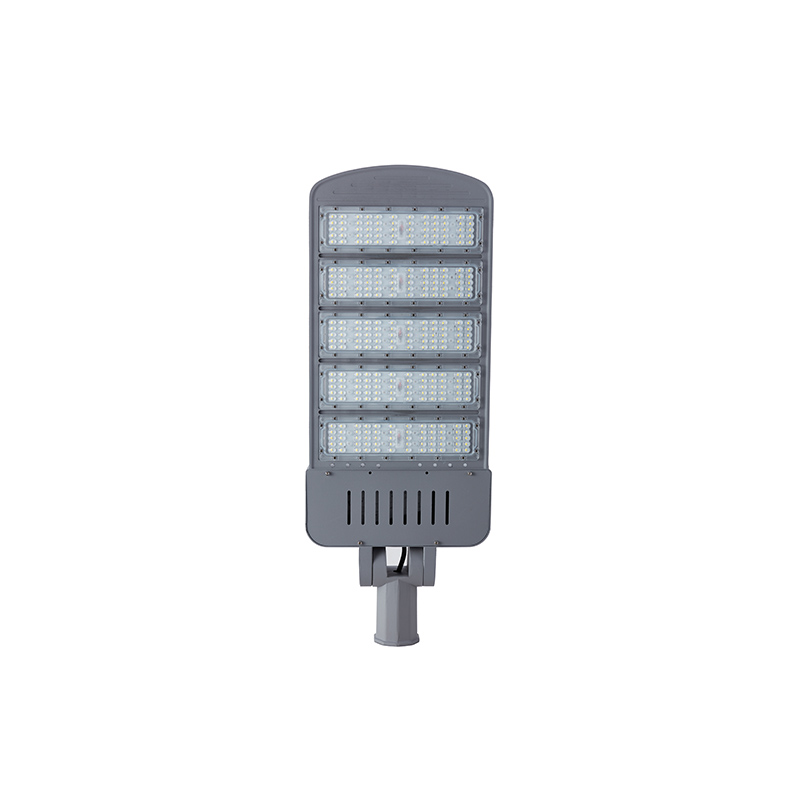

100W 150W 200W 250W 300W 400W LED City Light
LED Street Light
Model:LD059
This LED Street Lighting Fixture ensures even and bright illumination which consumes lesser energy, making it ideal for cities, residential, and commercial purposes. With advanced LED technology, these fixtures ensure uptime and safety while significantly reducing energy consumption and maintenance costs.
LED City Light Parameters:
LD059A NON-Isolated 100-265V
| MODEL | LD059A -100W | LD059A -150W | LD059A -200W | LD059A -250W | LD059A -300W | LD059A -400W |
| POWER | 100W | 150W | 200W | 250W | 300W | 400W |
| LED QTY | 2X60PCS-2835SMD | 3X60PCS-2835SMD | 4X60PCS-2835SMD | 5X60PCS-2835SMD | 6X60PCS-2835SMD | 8X60PCS-2835SMD |
| Luminous Flux | 100-110LM/W | 100-110LM/W | 100-110LM/W | 100-110LM/W | 100-110LM/W | 100-110LM/W |
| Input Voltage | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Dimension L*W*D(mm) | 515*290*70 | 600*290*70 | 677*290*70 | 760*290*70 | 837*290*70 | 1000*290*70 |
| Net Weight(kg) | 1.68 | 2 | 2.4 | 2.8 | 3.2 | 3.8 |
LD059B Isolated 100-265V
| MODEL | LD059B -100W | LD059B -150W | LD059B -200W | LD059B -250W | LD059B -300W | LD059B -400W |
| POWER | 100W | 150W | 200W | 250W | 300W | 400W |
| LED QTY | 2X60PCS-2835SMD | 3X60PCS-2835SMD | 4X60PCS-2835SMD | 5X60PCS-2835SMD | 6X60PCS-2835SMD | 8X60PCS-2835SMD |
| Luminous Flux | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Dimension L*W*D(mm) | 515*290*70 | 600*290*70 | 677*290*70 | 760*290*70 | 837*290*70 | 1000*290*70 |
| Net Weight(kg) | 1.68 | 2 | 2.4 | 2.8 | 3.2 | 3.8 |
Jiangmen City Feidong Lighting Co ., Ltd founded in 2009, with more than 15 years ' experience , we are professional manufacturer in line of various indoor and outdoor LED lighting products . Having been equipped with advanced manufacturing machines and quality test facilities , our factory is located in Jiangmen , with convenient transportation to Guangzhou , Shenzhen and Hongkong . We keep developing varieties of our product and upgrading our quality control system to enhance our market competitiveness . Meanwhile , OEM and ODM service are offered . Customer First , Environment First . These are our commitment to customers as well as the service tenet we are persevering .
