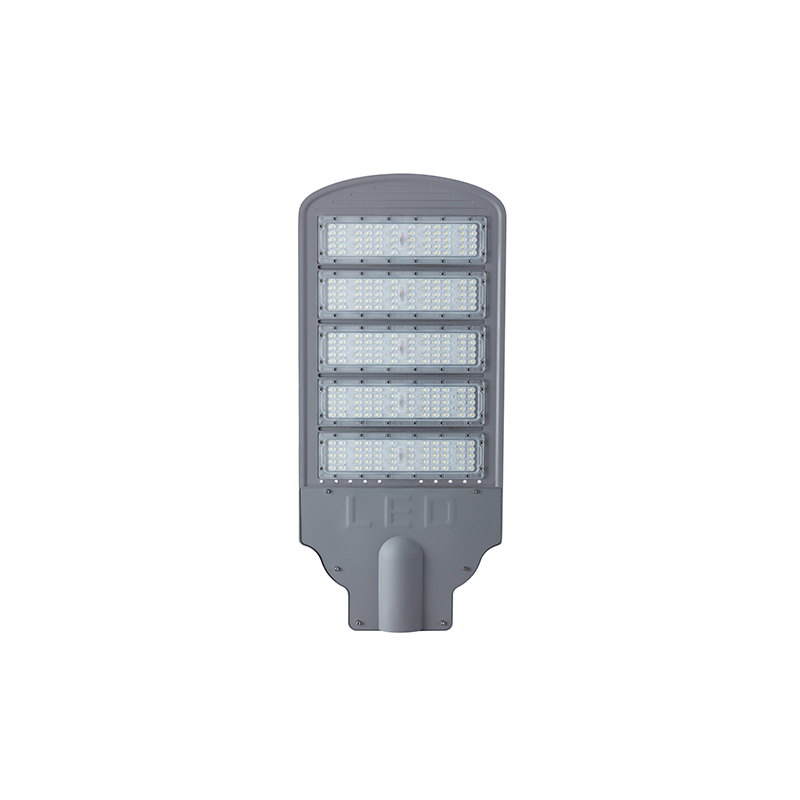

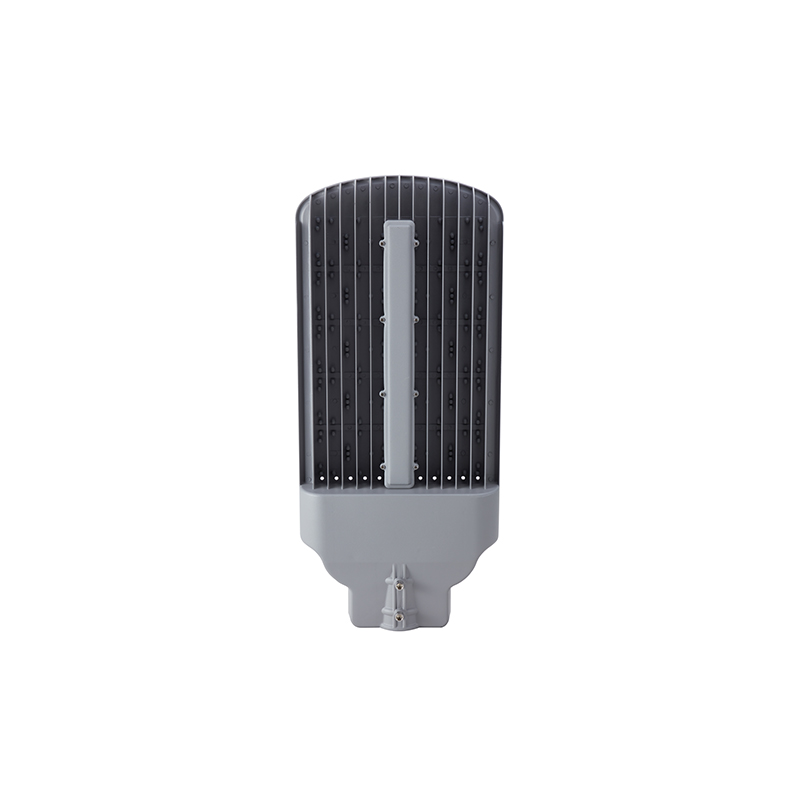

100W 150W 200W 250W LED Street Lighting Fixture
LED Street Light
Model:LD058
This LED Street Lighting Fixture ensures even and bright illumination which consumes lesser energy, making it ideal for cities, residential, and commercial purposes. With advanced LED technology, these fixtures ensure uptime and safety while significantly reducing energy consumption and maintenance costs.
LED Street Lighting Fixture Parameters:
LD058A NON-Isolated 100-265V
| MODEL | LD058A -100W | LD058A -150W | LD058A -200W | LD058A -250W |
| POWER | 100W | 150W | 200W | 250W |
| LED QTY | 2X60PCS-2835SMD | 3X60PCS-2835SMD | 4X60PCS-2835SMD | 5X60PCS-2835SMD |
| Luminous Flux | 110-120LM/W | 110-120LM/W | 110-120LM/W | 110-120LM/W |
| Input Voltage | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V | NON-Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
| Dimension L*W*D(mm) | 430*280*80 | 510*280*80 | 591*280*80 | 695*310*80 |
| Net Weight(kg) | 1.27 | 1.58 | 1.84 | 2.9 |
LD058B Isolated 100-265V
| MODEL | LD058B -100W | LD058B -150W | LD058B -200W | LD058B -250W |
| POWER | 100W | 150W | 200W | 250W |
| LED QTY | 2X60PCS-2835SMD | 3X60PCS-2835SMD | 4X60PCS-2835SMD | 5X60PCS-2835SMD |
| Luminous Flux | 120-130LM/W | 120-130LM/W | 120-130LM/W | 120-130LM/W |
| Input Voltage | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V | Isolated 100-265V |
| Withstand Voltage | 1500V | 1500V | 1500V | 1500V |
| Anti-Surge | 6KV | 6KV | 6KV | 6KV |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Color Rendering Index | >80 | >80 | >80 | >80 |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Beam Angle | 80-145° | 80-145° | 80-145° | 80-145° |
| Housing Color | Grey/Black | Grey/Black | Grey/Black | Grey/Black |
| Working Temp | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C | －30~ + 50°C |
| Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Life Time | >30000Hrs | >30000Hrs | >30000Hrs | >30000Hrs |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Dimension L*W*D(mm) | 430*280*80 | 510*280*80 | 591*280*80 | 695*310*80 |
| Net Weight(kg) | 1.27 | 1.58 | 1.84 | 2.9 |
